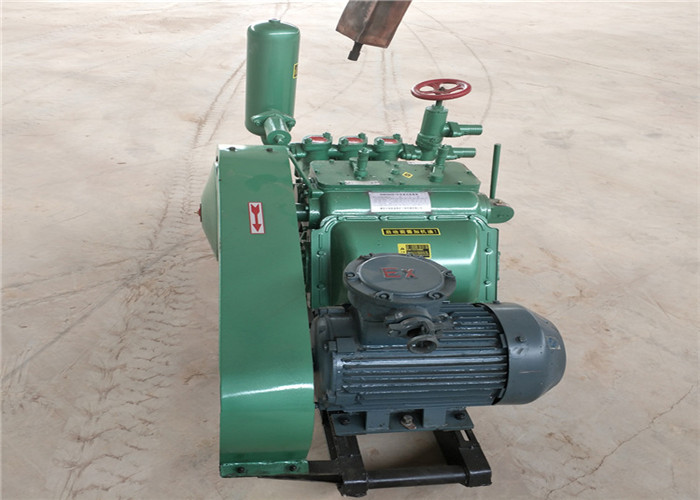

Large Type BW 250 Drilling Mud Pump for Irrigation
1.BW grotuting pump is widely used for grouting and mud jacking in enguneering conatruction.
2.BW mud pump have four gear shifts.Output and drilling depth are adjustablr,so it can be used to grout cement slurry or equuipped with drilling machine.
3.BW grouting pump is widely used in railway,hydraulic engineering,matallurgical engineering,building construction,geological exploration,engineering exploration.
Mud pump is a horizontal three-cylinder reciprocating single-acting piston pump
It is mainly used for core drilling rig supporting transportation slurry,also can be used for other aspects of grouting,mine drainage and long-distance water supply and other uses.The pump has low energy consumption,flexible operation,high quality and durability,good decomposability ad easy relocation.Drilling cycle water power source.
Working
BW mud pump is horizontal triplex grout pump with high stability and high pressure.
Eight gear shift to adjust the flow,large output capacity,simple operation.
High quality pump parts,less wearing parts,long service life,low construction cost.
Fast suction-discharge speed,high pump efficiency.
Less noise and dust,environmental operation.
| BW Mud pump |
| Model | BW150 | BW160 | BW250 | BW320 |
| Max. Flow rate | 150L/Min | 160L/Min | 250L/Min | 320L/Min |
| Max. pressure | 7Mpa | 10Mpa | 6Mpa | 8Mpa |
| power | 7.5KW | 11KW | 15KW | 30KW |
| inlet pipe diameter | 51mm | 51mm | 76mm | 76mm |
| outlet pipe diameter | 32mm | 32mm | 51mm | 51mm |
| Weight | 480kg | 560kg | 760kg | 1000kg |
Product Parameter:
| Type | Horizontal, triplex, reciprocating, single acting piston pump |
| Stroke | 100mm |
| Bore | 80mm | 65mm |
| Pump speed (s.p.m) | 200 116 72 42 | 200 116 72 42 |
| Output volume (l.p.m) | 250 145 90 52 | 116 96 60 35 |
| Discharge pressure (Mpa) | 2.5 4.5 6.0 6.0 | 4.0 6.0 7.0 7.0 |
| Volumetric efficiency | 85% |
| Mechanical efficiency | 85% |
| Total efficiency | 70% |
| Input power/speed (kw/r.p.m) | 15/1500 |
| Multiple grooved pulley D.P (mm) | 410(B groove*5) |
| Input speed of pump (r.p.m) | 500 |
| Max. suction head (m) | 2.5 |
| Inside diameter of suction hose (mm) | 76 |
| Inside diameter of discharge (mm) | 51 |
| Overall dimensions (mm) | 1100*995*650 |
| Weight (kg) | 500(without power) |
