DTH Hammer Large Hole Diameter Deep Water Pneumatic Drilling Rig

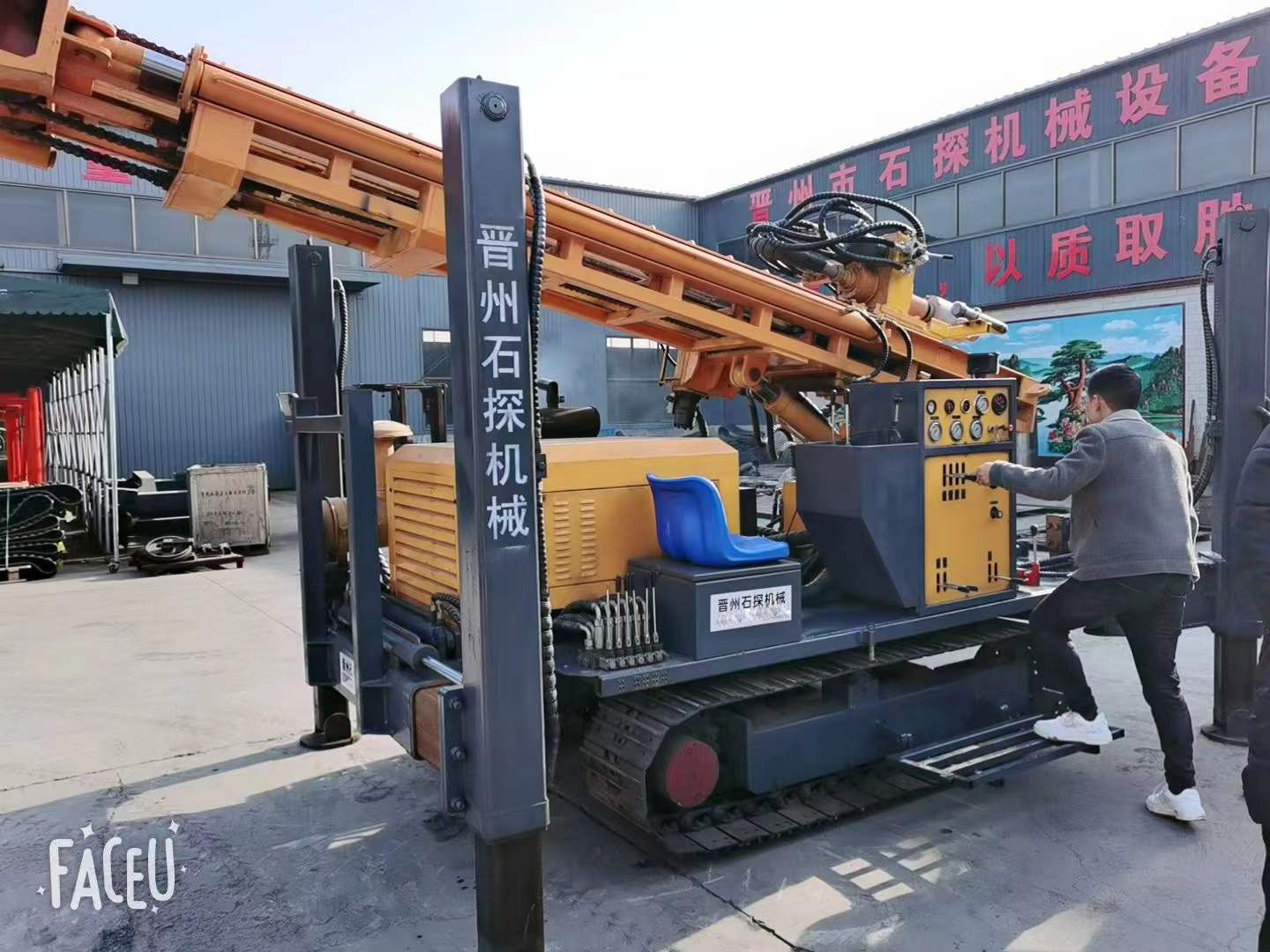

ST 180 Pneumatic Drilling Rig Introduction
ST 180 drilling rig can drill up to 180m, the drilling diameter is 105-180mm, the lifting force is 16t, the tower height is 3M, and the whole machine weight is 4.5t, It adopts the rubber track design, which has the advantages of low noise, no damage to the road, less vibration and high speed.
ST 180 Pneumatic Drilling Rig Tech Data
| Drilling Rig Model | ST-180 | Air consumption(m³/min) | 17-31 |
| Rig Weight(T) | 4.5 | Equipped capacitor(Kw) | 55 |
| Dimensions(mm) | 3800*1550*2350 | Swing speed(rpm) | 45-65 |
| The hole diameter(mm) | 140-254 | Swing torque(N.m) | 3200-4600 |
| Drilling Depth(m) | 180 | Drill pipe diameter(mm) | 76 89 |
| Stroke | 3.3 | Drill pipe length(m) | 1.5 2.0 3.0 |
| Walking speed(Km/h) | 2.5 | Rig lifting force(T) | 10 |
| Climbing angles(Max.) | 30 | sopporting Power | 29m3/min 23BAR AIR COMPRESSOR |
| air compressor (Mpa) | 1.7-2.5 | | |
ST 180 Pneumatic Drilling Rig Features
1. The pneumatic impact principle is adopted, and the drilling footage is fast
2. Equipped with rubber steel wire crawler, it is easy to move and does not hurt the road when walking on urban roads.
3. Equipped with high hydraulic outrigger, it is convenient for loading and unloading vehicles, saves hoisting costs, and can be used for leveling of drilling rig to maintain the stability of the fuselage.
4. Equipped with high-power diesel engine, it has strong power and can effectively meet the needs of work.
ST 180 Pneumatic Drilling Rig FAQ & Service
Q 1: What kind of drilling rig do you have?

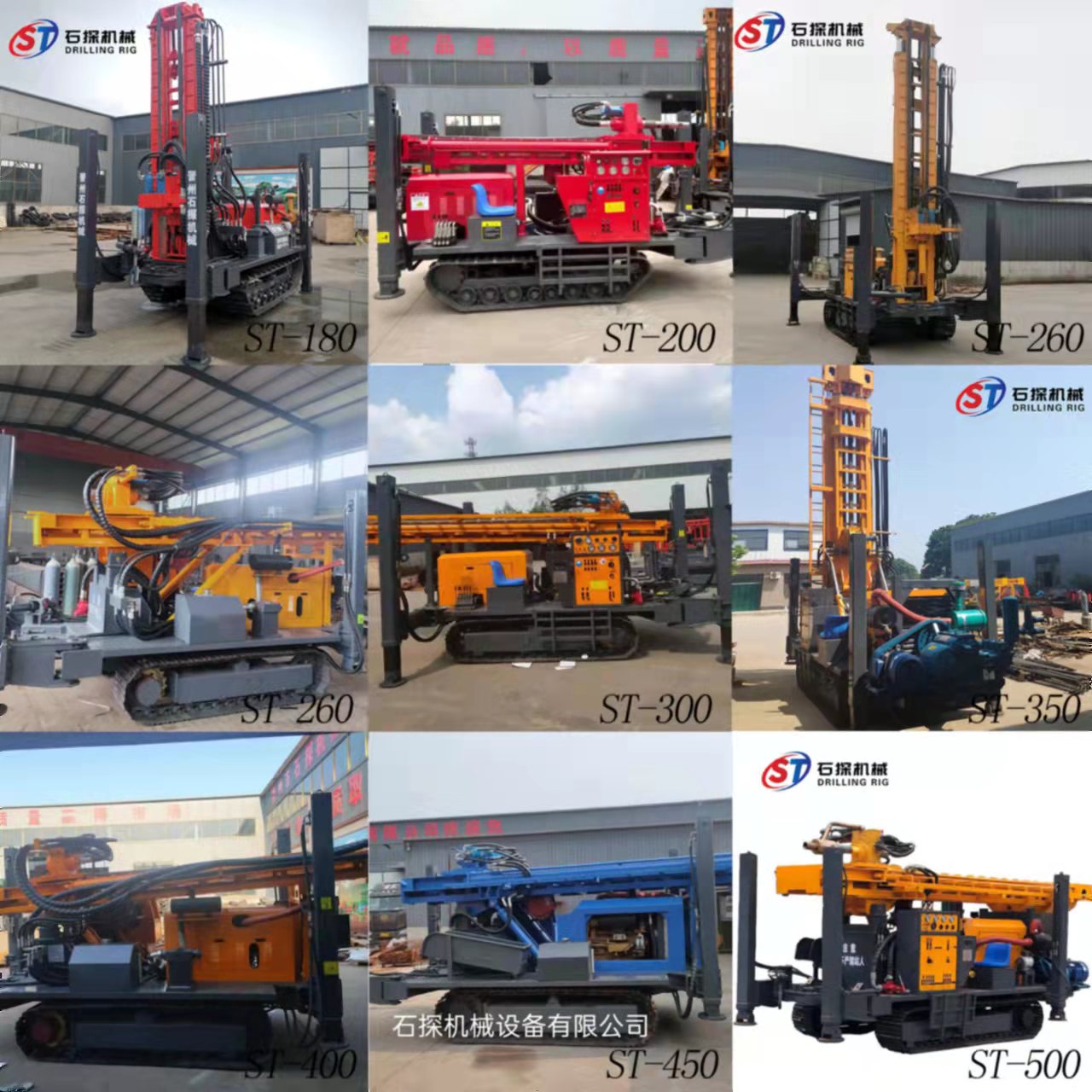

A: We mainly produce small hydraulic drilling rig, water well drilling rig, core drilling rig, engineering drilling rig, geological exploration drilling rig, etc., and we will recommend the suitable model according to your exact requirement .
Q 2: Where is the address of your company?
A: Our factory is in Jinzhou, Shijiazhuang City, Hebei Province, China
Q 3: Are you a manufacturer or a trading company?
A:We are a 20 years professional manufacturer with ISO certificate. We have a large modern drilling rig plant in Hebei, China.
Q 4: How long is your delivery time?
A: Small hydraulic drilling rigs generally take 5-7 days, and large model will take 7-15 days.
If there is an urgent order, please contact our sales in advance.
