BW 160 Drilling Mud Pump Horizontal Type High Pressure Triplex Pump Small Volume

Name: BW 160 Drilling Mud Pump Horizontal Type High Pressure Triplex Pump Small Volume
Brand: ShiTan
Price: 1 USD

Buy cheap BW 160 Drilling Mud Pump Horizontal Type High Pressure Triplex Pump Small Volume product

Brand Name : ShiTan

Model Number : BW-160

Certification : ISO9001

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/A, T/T, Western Union

Supply Ability : 20000Set/Year

Delivery Time : Within 7-12 days

Packaging Details : Standard export transportation package

Power : Hydraulic

Pressure : High Pressure

Application : Metering

Structure : water well mud pump

Usage : Water

Fuel : Diesel

Feature : Critical Cleaning / Residue Free

Contact Now

BW 160 Drilling Mud Pump Horizontal Type High Pressure Triplex Pump Small Volume

Descreption

The BW-160 mud pump is a horizontal , three-cylinder single-acting ,reciprocal piston pump . It is mainly used to supply flushing fluid to the drilling well in engeering drill's bedrock drilling well in engineering drill's bedrock driling or exploratory drilling . Its shell is A-alloy , so it is lightweight .The pump has two speed and is easily operation

Product Introduction

Model BW-160 mud pump is a kind of portable mud pump. The pump is a horizontal single cylinder double-acting pump.

1, Compact structure, light weight, small volume, beautiful appearance.

2, The design on the use of new ideas, new structure, new materials, new technology;

3, Loss of long life, high reliability

Technology Parameters

Type	Horizontal type single-cylinder Double-action pump
Cylinder Diameter	95 mm
Stroke	85 mm
Reciprocate Times	165 times/ minute
Displacement	160 L/min
Pressure	1.3 MPa
Volume Effiency	80%
Input Speed	951 rotations/min
Transmisiion shaft speed	D180/Z5.88kw
Input pipe diameter	50mm
Output pipe diameter	40mm
Mass (including the engine)	200 kg
Dimensions	1110725965 mm

BW 160 Drilling Mud Pump Horizontal Type High Pressure Triplex Pump Small Volume

Product Tags:

water well mud pump

reciprocating mud pump

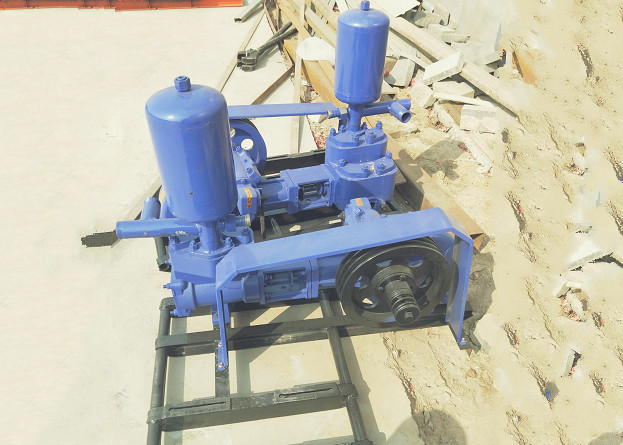

BW 160 Drilling Mud Pump Horizontal Type High Pressure Triplex Pump Small Volume Images
