General Survey Core Exploration Drilling Rig Machine For Sampling

Name: General Survey Core Exploration Drilling Rig Machine For Sampling
Brand: ShiTan
Price: 1 USD

Buy cheap General Survey Core Exploration Drilling Rig Machine For Sampling product

Brand Name : ShiTan

Model Number : ST-1A

Certification : ISO9001

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/A, T/T, Western Union

Supply Ability : 2000set/year

Delivery Time : Within 7-12 days

Packaging Details : Standard Export package

Type : General Survey Core Exploration Drilling

Model Numbe : ST-1A

Drilling depth : 30-100m

Max. open hloe caliber : 220mm

Power(W) : 13000w

Usage : For Sampling

Contact Now

General Survey Core Exploration Drilling Machine For Sampling

Core Drill Rig Description:

General Survey Core Exploration Drilling Machine is a shallow ho sale drilling rig, with high-speed vertical light drilling rig, mainly used in shallow geological exploration, engineering construction, family water wells or farm irrigation wells.

Core Drill Rig specifications:


		Swivel Head
Drilling depth	Max.150m	Spindle speed
Hole diameter	Max.150m	Spindle stroke	450kmm
Drill rod diameter	42mm	Spindle pull-down	Max. 15KN
Angle range	90-75	Spindle lifting capacity	Max. 25KN

Model	YBC- 12/ 125	Model	Horizon talreciprocating single-actingpiston pump
Rated pressure	12.5Mpa	Working pressure	Max. 1.25Mpa
Flow speed	8ml/r
Ratedspeed	1500r/min
		Power(diesel)
Max.liftingcapacity	15KN	Model(dieselengine	ZS1105
Hoistingdrumrevolution	121 , 76 , 36 (r/min)	Ratedpower	12. 1KW
Drumdiameter	140mm	Ratedspeed	2200r/m
WEIGHT	AROUND600KG
SIZE	1620970 1560mm

Core Drill Rig Applications:

1. Used for general survey exploration, geophysical exploration, road and building exploration, blasting holes and other drilling projects;

2, according to the formation of different choice of alloy, steel sand and steel particles and other bits for drilling;

3, can drill 2-9 class sand clay and bedrock layer.

Core Drill Rig Main features:

1, with oil pressure automatic feeding mechanism, drilling efficiency is high.

2. The upper ball clamping mechanism is adopted to replace the chuck, and the backstroke can be implemented without stopping.

3. Centralized handle, convenient operation, safe and reliable.

4. Compact structure, drilling rig, water pump and diesel engine are all installed on the same base frame, occupying a small area of the site.

5, light weight, strong decomposition, easy to move, suitable for plain and mountain work.

General Survey Core Exploration Drilling Rig Machine For Sampling

Product Tags:

rock core drilling machine

geological drilling machine

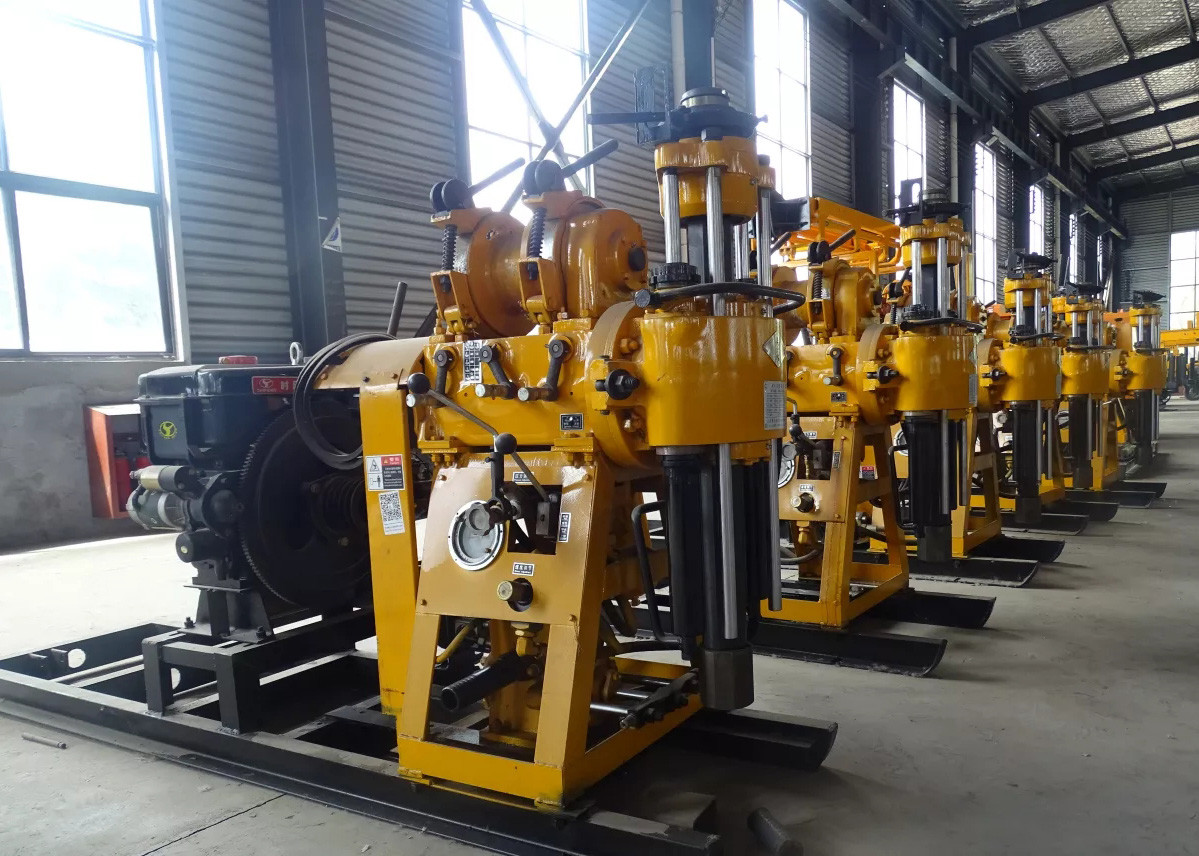

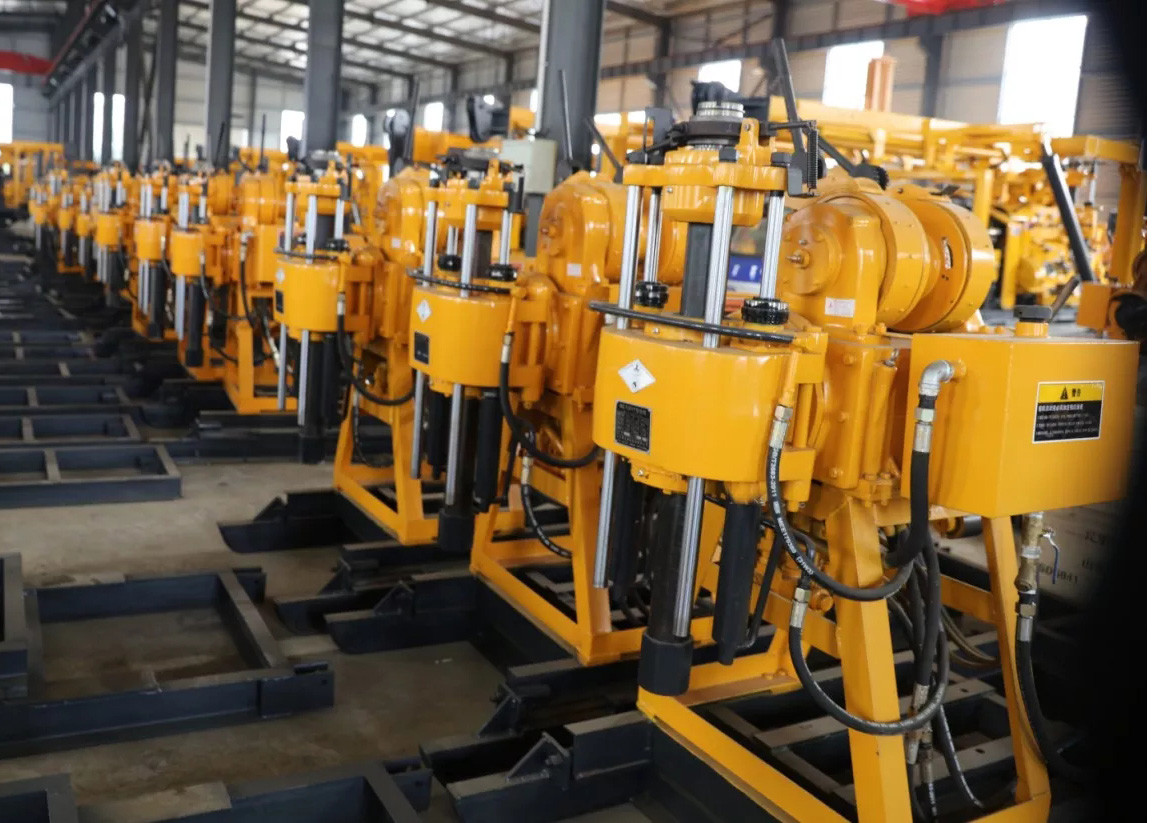

General Survey Core Exploration Drilling Rig Machine For Sampling Images
