Widely Used Diesel BW Portable Mud Pump Electric Power For Drilling Rig

Name: Widely Used Diesel BW Portable Mud Pump Electric Power For Drilling Rig
Brand: JINZHOU SHITAN
Price: 1 USD

Brand Name : JINZHOU SHITAN

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 20000 sets per year

Delivery Time : 7-10 days

Packaging Details : Standard Export Package

Model Number : BW150/160/250

Application : Sewage

Power : Electric

Fuel : Diesel

Pressure : High Pressure

Product Name : mud pump

Name : drilling mud pump

Voltage : 220V/380V

Warranty : 1 Year

Contact Now

Widely Used Diesel BW Mud Pump for Drilling Rig

Product Description:

1. A horizontal, triplex, single acting reciprocation piston pump. The pump can choose diesel motor power, It has simple operation, convenient, can achieve close range or remote control.

2. This pump is a compact structure, smooth operation, high output pressure, longer life expectancy, stable performance, good general and so on.

3. This pump adopts the car transmission,Can get six different discharge and pressure,Reasonable configuration parameters selection,The construction technology can satisfy different requirements.

4. Mainly used drilling fluid in supply for 2000m about core drilling coal field geology, metallurgy geology, hydrogeololgy, drilling fluid can use mud and water, the coal water etc.

Product Parameter:

Model	BW150	BW160	BW250	BW320
Max. traffic	150L/min	160L/min	250L/min	320L/min
Max. pressure	7Mpa	10Mpa	6Mpa	8Mpa
Power	7.5kw	11kw	15kw	30kw
Inlet pipe diameter	51mm	51mm	76mm	76mm
Outlet pipe diameter	32mm	32mm	51mm	51mm
Weight	560kg	480kg	760kg	1000kg

Widely Used Diesel BW Portable Mud Pump Electric Power For Drilling Rig

Product Tags:

portable mud pump

reciprocating mud pump

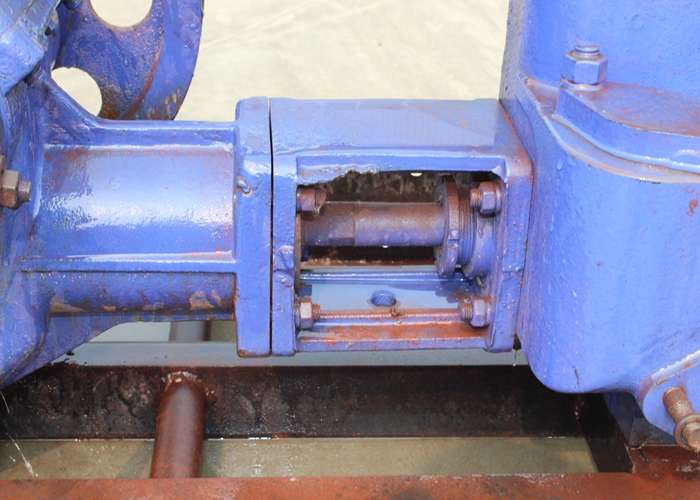

Widely Used Diesel BW Portable Mud Pump Electric Power For Drilling Rig Images
